Blackbird Check-in:
Monitor events on your shop floor
from anywhere in the world.


What is Check-in

Blackbird Check-in lets you monitor events on your shop floor from anywhere in the world. It is quick to install and works with your existing machines.

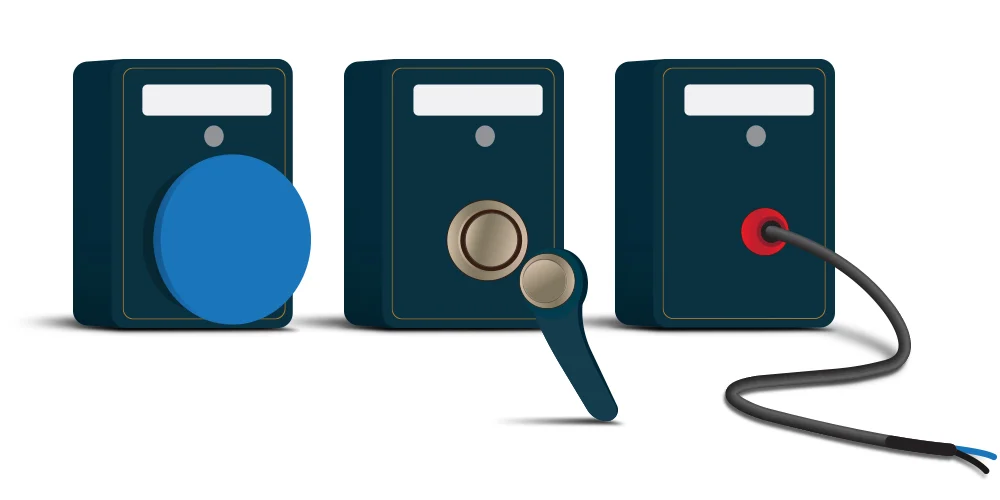

Blackbird Check-in is a wireless industrial IoT device for event signals that connects machines, equipment and processes to digital platforms at a low cost in no time.




Application examples

What you can do with Check-in


Connect actions, machines and processes directly to a digital platform


Push the Stop Cause Button when your line stops

Automatically registers stop causes on the cloud application.

DOWNTIME ANALYSIS


Check-in gets signals from PLC automatically

Visualises the machine status on the graph and chart.

MONITORING ON A SMARTPHONE


Check-in gets signals from andon lights

Sends an SMS to operators when the light turns red.

PUSH MESSAGES ON A MOBILE PHONE


Check-in gets signals from stand-alone machines

Monitor your machine status from anywhere.

ON/OFF STATUS MONITORING


Check-in gets signals from movement at manual stations

Digitises manual processes and visualises progresses.

PROGRESS MONITORING


Push the Issue Log Button when your line stops

Automatically registers issues with time stamps on the cloud application.

ISSUE LOGGING




Use the Internet of Things (IoT), connect your machines and process to a digital platform



How it works

Check-in is a capable little device that collects event signals and sends the data to a cloud server using state of the art LoRa technology.

Check-in collects data from electrical signals or physical buttons and sends the data to the LoRa network wirelessly. The LoRa gateway securely forwards the data to the Blackbird cloud server. Once data has reached the server, the Blackbird application can analyse, visualise and trigger further actions on demand such as sending alert messages automatically.

*Customers can choose to use Wi-Fi instead of a LoRa network.  –  This requires a power cable on Check-in devices.
*The Check-in gateway sends data to the cloud via ethernet as standard. Customers can optionally choose to use Wi-Fi or a cellular network.



LoRa Technology

The Check-in gateway can create up to kilometers of wireless LoRa network signal with low power consumption, where thousands of battery-driven IoT devices can be connected.

*End-to-end solution: Blackbird provides LoRa gateway to customers.



Features

Blackbird Check-in is the fast track to industry 4.0.



LoRa based IIoT –
Industrial Internet of Things

  • End-to-end solution

  • Wireless palm-sized hardware

  • Plug and play installation

  • Low power wide range LoRa network

  • Battery driven devices

  • Low cost operation

  • Scale to thousands of connected devices

  • IP67 durable external enclosure



Plug and Play installation, end-to-end solution

Blackbird Check-in works independently of your existing systems by using LoRa network. The installation merely requires a power supply and internet access.

Wireless, low cost, low power operation

By using LoRa technology, the Check-in gateway creates up to kilometers of wireless LoRa network signal with low power consumption, where thousands of battery-driven IoT devices can be connected.

Easy implementation

Check-in devices are designed for industrial use, using the protective IP67 external box with 2 years ( or 10,000 event signals) of battery life. The highly durable compact devices are easy to use and minimise disturbance of your existing workflows and work environments. (e.g. operators do not need to take off their gloves to use the devices, and the devices can be installed in small spaces behind machines).




User Applications




       Case 1

     Track production stops and enhance downtime analysis

Blackbird Check-in Stop Cause Button

Check-in helps Factbird users easily and quickly register faults and errors on production lines.

Each Check-in button is pre-defined with a stop cause (e.g. material delay, packaging jam, machine issue). When production lines stop, a press of a button will automatically categorise the cause on the Blackbird system. When the stop is categorised in the Blackbird system, it can be visually analysed from smartphones, tablets and PCs in real time.




       Case 2

     Monitor machine On/Off status on your shop floor from anywhere in the world


Blackbird Check-in Wiretap Machine Monitoring

Get your existing production equipment online and digitalise your stand-alone machines.

Check-in collects data from the cable that gets electrical signals from your existing production machines and equipment. For example, Check-in receives the machine stop signal and automatically sends the signal to the Blackbird cloud server. Data can either be visualised on the Blackbird dashboard or trigger an alert via SMS.
